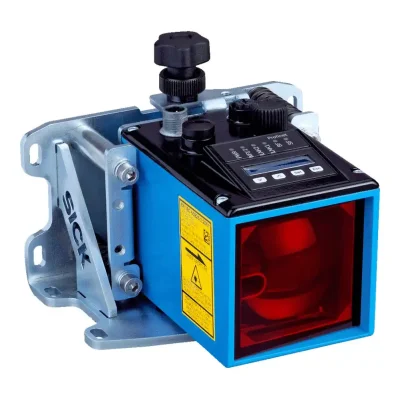

SICK DL100-13AA2103 Long-Range Distance Sensors Dx100

Long-range distance sensors - Dx100
Manufacturer: SICK
Type: DL100-13AA2103 | Part no.: 1059973 |

• Measuring range: 0.15 m ... 220 m, on diamond grade reflective tape
• Repeatability: 1.5 mm, at dead time 10 ms, 1.25 mm, at dead time 30 ms
• Accuracy: ± 5 mm
• Communication interface: Serial
• Digital output: 2 x push-pull: PNP/NPN
• Heating: no
• Modulation frequency: Fix

Download Link: Documents Related [Click Link.]>>
Product Data sheet: DL100-11AA2103_1059961
Product family overview: Dx100
User manual: DL100 Pro RS-422 Distance sensor

Please Notes
1 Year of Warranty
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
Country of Origin: Germany
