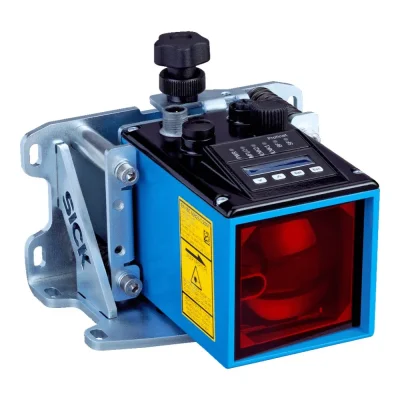

DL100-11AA2103 (#1059961) SICK Long-Range Distance Sensors Dx100

The Dx100 Long range distance sensors
Manufacturer: SICK
Type: DL100-11AA2103 | Part no.: 1059961 |

• Measuring range: 0.15 m ... 60 m, on diamond grade reflective tape
• Repeatability: 1.5 mm, at dead time 10 ms, 0.75 mm, at dead time 30 ms
• Accuracy: ± 3 mm
• Communication interface: Serial
• Digital output: 2 x push-pull: PNP/NPN
• Heating: no
• Modulation frequency: Fix

Download Link: Documents Related [Click Link.]>>
Product Data sheet: DL100-11AA2103_1059961
Product family overview: Dx100
User manual: DL100 RS-422

Please Notes
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
