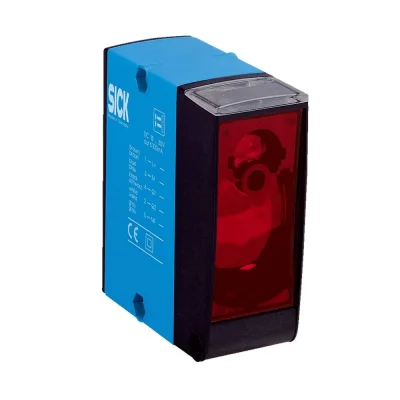

DS60-N41311 (#1016690) Mid-Range Distance Sensors Dx60/DS60 - SICK

Manufacturer: SICK
Model name: DS60-N41311
Part no.: 1016690

Mid-range distance sensors - Dx60

• Measuring range: 80 mm ... 6,000 mm, 90 % remission, 80 mm ... 5,000 mm, 18 % remission, 80 mm ... 2,600 mm, 6 % remission
• Response time: 50 ms
• Digital output: 2x NPN

• Light source: Laser, infrared
• Laser class: 1 (EN 60825-1)

• Supply voltage Vs: DC 18 V ... 30 V
• Connection type: Male connector, M12, 5-pin
• Enclosure rating: IP 67


Download Link: Documents Related [Click Link.]>>
Product data sheet: DS60-N41311_1016690
User manual: DS60

Please Notes
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
Country of Origin: Germany
