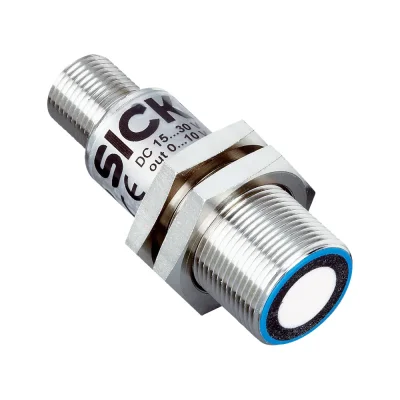

SICK UM18-211126111 Ultrasonic Sensors UM18

Manufacturer: SICK
Type: UM18-211126111 | Part no.: 6048392 |

Ultrasonic sensors - UM18

• Operating range, limiting range: 30 mm ... 250 mm, 350 mm
• Target: Natural objects
• Resolution:  0.069 mm
• Response time: 32 ms
• Ultrasonic frequency (typical): 320 kHz
• Type of analog output: Current output (4 mA ... 20 mA)
• Communication interface: -
• Design: Cylindrical
• Thread size: M18 x 1
• Sending axis: Straight
• Connection type: Male connector, M12, 5-pin
• Supply voltage UB: DC 10 V ... 30 V
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 18 mm x 18 mm x 52.7 mm

Download Link: Documents Related

Product data sheet: UM18-211126111 (PDF)
Product family overview: UM18 series
Product information: Ultrasonic Sensors UM30, UM18, UM12, UC30, UC12, UC4, UD18
User manual: UM18-2 Pro
Quick start: UM18-2 Pro

Please Notes

Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
