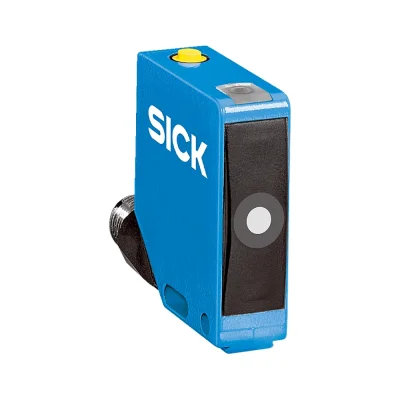

SICK UC12-12235 Ultrasonic Sensors UC12

Manufacturer: SICK
Type: UC12-12235 | Part no.: 6029834 |

Ultrasonic sensors - UC12

• Operating range, limiting range: 30 mm ... 250 mm, 350 mm
• Target: Natural objects
• Resolution: 0.1 mm
• Response time: 30 ms
• Ultrasonic frequency (typical): 500 kHz
• Digital Output: 2 (NPN)
• Switching frequency: 25 Hz
• Communication interface: -
• Design: Rectangular
• Housing material: Metal (zinc diecast)
• Sending axis: Straight
• Connection type: Male connector, M12, 4-pin
• Supply voltage UB: DC 10 V ... 30 V
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 15 mm x 48.8 mm x 43.5 mm

Download Link: Documents Related

Product data sheet: UC12-12235 (PDF)
Product family overview: UC12 series
Product information: Ultrasonic Sensors UC30, UC12, UC4, UD18

Please Notes

Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
