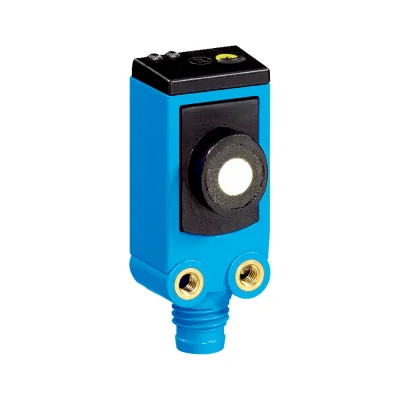

SICK UC4-13341 Ultrasonic Sensors UC4

Manufacturer: SICK
Type: UC4-13341 | Part no.: 6034669 |

Ultrasonic sensors - UC4

• Operating range, limiting range: 13 mm ... 150 mm, 250 mm
• Target: Natural objects
• Resolution: 0.1 mm
• Response time: 24 ms
• Ultrasonic frequency (typical): 380 kHz
• Digital Output: 1 (PNP)
• Switching frequency: 30 Hz
• Communication interface: -
• Design: Rectangular
• Housing material: Plastic (ABS)
• Sending axis: Straight
• Connection type: Male connector, M8, 3-pin
• Supply voltage UB: DC 15 V ... 30 V
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 16 mm x 40.1 mm x 16.7 mm

Download Link: Documents Related

Product data sheet: UC4-13341 (PDF)
Product family overview: UC4 series
Product information: Ultrasonic Sensors UC30, UC12, UC4, UD18

Please Notes

Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
