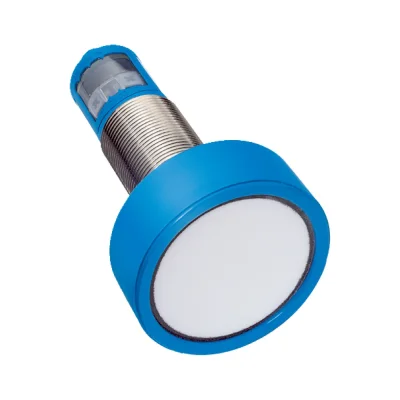

SICK UM30-215112 Ultrasonic Sensors UM30

Manufacturer: SICK
Type: UM30-215112 | Part no.: 6037668 |

Ultrasonic sensors - UM30

• Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm
• Target: Natural objects
• Resolution: 0.18 mm
• Response time: 240 ms
• Switching frequency: 3 Hz
• Ultrasonic frequency (typical): 80 kHz
• Digital output: 2 (PNP)
• Housing material: Metal (nickel-plated brass)
• Design: Cylindrical
• Thread size: M30 x 1.5
• Sending axis: Straight
• Connection type: Male connector, M12, 5-pin
• Supply voltage UB: DC 9 V ... 30 V
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 65 mm x 65 mm x 105 mm

Download Link: Documents Related

Product data sheet: UM30-215112 (PDF)
Product family overview: UM30 series
Product information: Ultrasonic Sensors UM30, UM18, UM12, UC30
