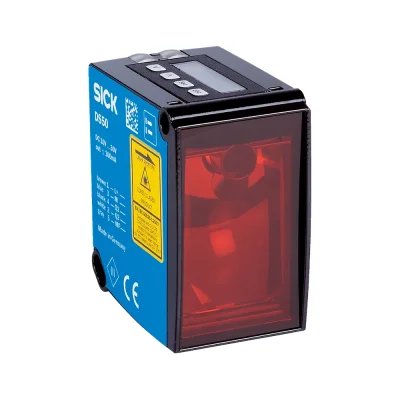

SICK DL50-P2225 Mid-Range Distance Sensors Dx50/DL50 Hi

Manufacturer: SICK
Model name: DL50-P2225 | Part no.: 1048418 |

Mid-range distance sensors - Dx50

• Measuring range: 200 mm ... 50,000 mm, on diamond grade reflective tape
• Target: Reflector
• Light source: Laser
• Laser class: 1
• Resolution: 0.1 mm
• Minimum response time: 10 ms ... 160 ms, 10 ms / 40 ms / 160 ms

• Interfaces: RS-422

• Digital output: 2 x (PNP)

• Connection type: Male connector, M12, 8-pin
• Enclosure rating: IP65
• Supply voltage UB: DC 10 V ... 30 V
• Indication: LC display, 2 x LED
• Housing material: Metal (zinc diecast)
• Dimensions (W x H x D): 36.1 mm x 62.7 mm x 57.7 mm

Download Link: Documents Related

Product data sheet: DL50-P2225 (PDF)
User manual: DL50 Hi | DL50 Hi Distance Sensor
Product family overview: Dx50

Please Notes
Country of Origin: Germany
