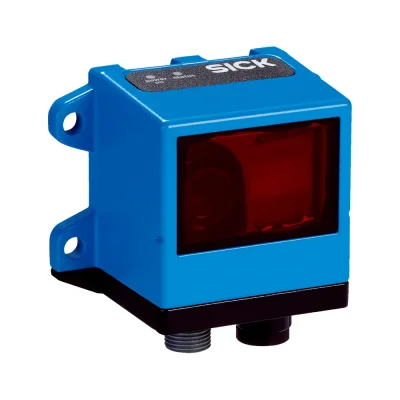

SICK OLM100-1005 Linear Measurement Sensor OLM100

Manufacturer: SICK
Model name: OLM100-1005 | Part no.: 1046580 |

Linear measurement sensors - OLM100

• Measuring range: 0 m ... 10,000 m
• Target: Reflector
• Light source: LED, red

• Resolution: 0.1 mm, 1 mm
• Repeatability: 1 mm
• Max. movement speed: 4 m/s

• Reading distance: 100 mm, ± 20 mm
• Barcode width: 30 mm
• Interfaces: Serial, RS-485

• Connection type: 1 x socket M12, 4-Pin ; 1 x connector M12, 5-pin
• Enclosure rating: IP65
• Supply voltage UB: DC 10 V ... 30 V

• Housing material: Plastic (PBS)
• Dimensions (W x H x D): 74.4 mm x 69.4 mm x 42 mm

Download Link: Documents Related

Product data sheet: OLM100-1005 (PDF)
User manual: OLM100 Linear measurement sensor
Product family overview: OLM100 series

Please Notes
Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
