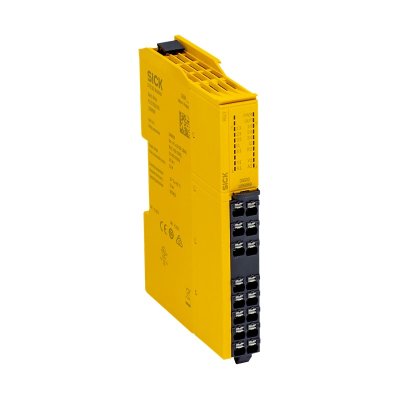

RLY3-OSSD300 (#1099969) SICK Safety Relays - ReLy

Manufacturer: SICK
Model name: RLY3-OSSD300
Part no.: 1099969
Safety relays:

ReLy / Output expansion module for OSSDs

• Module: Relay module
• Applications: Evaluation unit

• Compatible sensor types: Safety sensors with OSSDs
• Restart interlock: yes
• External device monitoring (EDM): Integrated
• Inputs: 2 safety inputs
• Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 1 test pulse output (not safe)
• Safety integrity level: SIL 3 (IEC 61508)
• Category: Category 4 (EN ISO 13849)
• Performance level: PL e (EN ISO 13849)

• Connection type: Front connector with spring terminals

• Supply voltage: PELV or SELV
• Internal power consumption: 1.5 W
• Enclosure rating: IP20
• Dimensions (W x H x D):
  18 mm x 124.6 mm x 85.5 mm


Download Documents Related

Product data sheet: RLY3-OSSD300 (PDF)
User manual: ReLy OSSD1

Please Notes
Country of Origin: Hungary
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
Replacement for: 6025089, 6025097, 6024916
