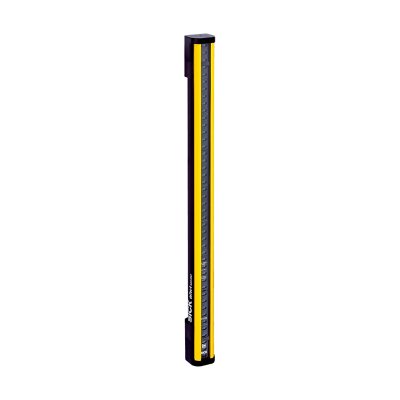

C4P-SA12031A00 (#1220129) SICK Safety Light Curtains, Sender - DeTect/DeTect4

Manufacturer: SICK
Model name: C4P-SA12031A00
Part no.: 1220129
Safety light curtains - DeTec / DeTec4 / Sender

• deTec variant: deTec4
• Safety level: Type 4, PL e, SIL3, SILCL3
• Resolution: 30 mm
• Scanning range: 30 m
• Protective field height: 1,200 mm
• System connection: Male connector M12, 5-pin, male connector M12, 8-pin
• Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin)
• Extension connection: Without extension connection, female connector M12, 5-pin, Depending on system plug (without extension connection or with M12 female connector, 5-pin)
• Enclosure rating: IP65, IP67

Download Documents Related

Product data sheet: C4P-SA12031A00 (PDF)
Operating: deTec4 - Safety light curtain
