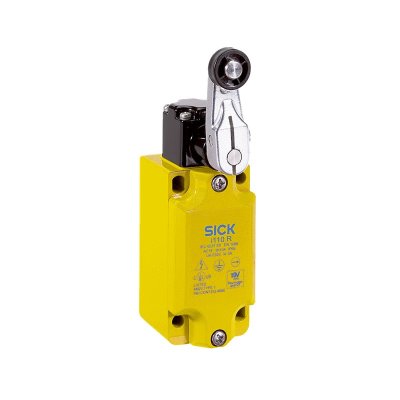

i110-RA123 (#6025109) SICK Electro-Mechanical Safety Switches - I110R

Manufacturer: SICK
Model name: i110-RA123
Part no.: 6025109
Electro-mechanical safety switches:

i110R / Safety position switch

• Actuating element type: Turning lever
• Number of positive action N/C contacts: 1
• Number of N/O contacts: 1
• Type: Type 1 (EN ISO 14119)

• Rated operating current (voltage):
  3 A (240 V AC)
  3 A (24 V DC)

• Housing material: Metal, Zinc diecast
• Connection type: Cable gland, 1 x M20
• Enclosure rating: IP66 (IEC 60529)

Download link Documents | www.sick.com

Product data sheet: i110-RA123 (PDF)
User manual: i110P, i110R - Safety position switch

Please note:
Country of Origin: Taiwan
