i110-RP223 (#6025077) SICK Safety Rope Pull Switch - I110RP

Manufacturer: SICK
Model name: i110-RP223
Part no.: 6025077
Safety command devices - i110RP / Rope pull switch

• Number of positive action N/C contacts: 2
• Number of N/O contacts: 2

• Safe series connection: None, only individual wiring (with diagnostics)
• Maximum cord length: 30 m

• Rated operating current (voltage):
  3 A (240 V AC)
  3 A (24 V DC)

• Housing material: Metal, Zinc diecast
• Connection type: Cable gland, 1 x M20
• Enclosure rating: IP66 (IEC 60529)

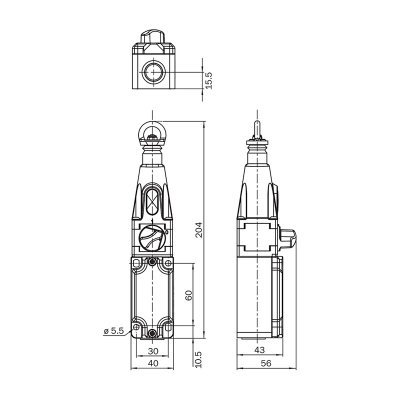

• Dimensions:
  40 mm x 204 mm x 56 mm


Download link Documents | www.sick.com

Product data sheet: i110-RP223 (PDF)
User manual: i110RP
Product family: i110RP series
Product segment: Safety Switches
