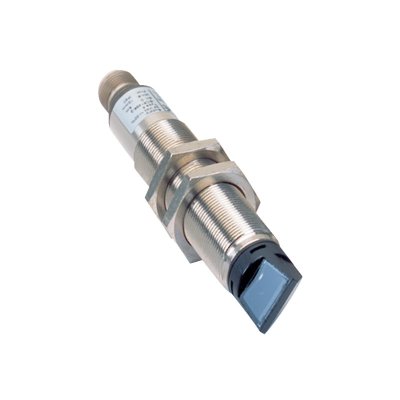

L40E-11MA1A (#6027342) SICK Safety Single-Beam Sensors L4000 System

Manufacturer: SICK
Model name: L40E-11MA1A
Part no.: 6027342
Safety single-beam sensors - L4000 Systems

• Safety level: Type 4, PL e, SIL3, SILCL3
• Scanning range: 7 m
• Detection capability: 30 mm

• Light source: LED
• Type of light: Visible red light
• Optical axis: Radial
• Response time:
  0.4 ms + Test device response time (UE401)
• Supply voltage VS: 24 V DC (19.2-28.8 V DC)
• Power consumption: 30 mA

• Housing material: Nickel-plated brass
• Connection type: Male connector M12, 4-pin
• Enclosure rating: IP67 (EN 60529)
• Design: Cylindrical
• Dimensions: M18 x 97.7 mm


Download link Documents | www.sick.com

Product data sheet: L40E-11MA1A (PDF)
Product overview: L4000 Systems
User manual: Safety Photoelectric Swith System L4000

Please note:
Country of Origin: Italy
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty
