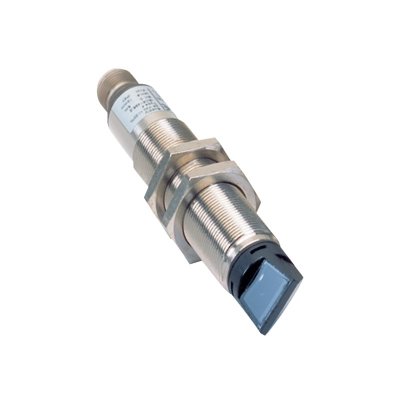

L41S-11MA1A (#6034868) SICK Safety Single-Beam Sensors L41

Manufacturer: SICK
Model name: L41S-11MA1A
Part no.: 6034868
Safety single-beam sensors - L41

• Safety level: Type 4, PL e, SIL3, SILCL3
• Scanning range: 7 m
• Detection capability: 30 mm

• Light source: LED
• Type of light: Visible red light
• Optical axis: Radial
• Response time:
  0.2 ms + Test device response time

• Supply voltage VS: 24 V DC (19.2-28.8 V DC)
• Power consumption: 30 mA

• Housing material: Nickel-plated brass
• Connection type: Male connector M12, 4-pin
• Enclosure rating: IP67 (EN 60529)
• Design: Cylindrical
• Dimensions: M18 x 97.7 mm


Download link Documents | www.sick.com

Product data sheet: L41S-11MA1A (PDF)
Product overview: L41 series
User manual: L41 (L4000 sensor family)
