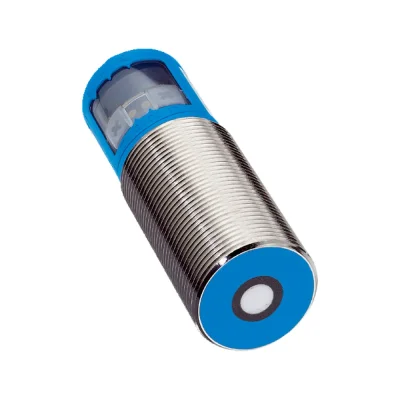

SICK UM30-213111 Ultrasonic Distance Sensors UM30

Manufacturer: SICK
Type: UM30-213111 | Part no.: 6037537 |

Ultrasonic sensors - UM30

• Operating range, limiting range: 200 - 1,300 mm, 2,000 mm
• Target: Natural objects
• Resolution: 0.18 mm
• Response time: 92 ms
• Switching frequency: 8 Hz
• Ultrasonic frequency (typical): 200 kHz
• Digital output: PNP

• Housing material: Metal (nickel-plated brass)
• Design: Cylindrical
• Thread size: M30 x 1.5
• Sending axis: Straight
• Connection type: Male connector, M12, 5-pin
• Supply voltage UB: DC 9 V ... 30 V
• Power consumption: 2.4 W
• Indication: LED display, 2 x LED
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 30 x 30 x 84 (mm)

Download Link: Documents Related | www.sick.com

Product data sheet: UM30-213111 (PDF)
Product family overview: UM30 series
Operating: UM30-21_111 - UM30-21_115
Product information: Ultrasonic Sensors UM30, UM18, UM12, UC30

Please Notes

Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty

Dimensional drawing UM30-211, UM30-212, UM30-213
