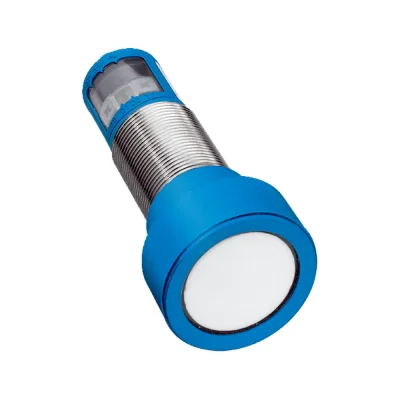

SICK UM30-214118 Ultrasonic Distance Sensors UM30

Manufacturer: SICK
Type: UM30-214118 | Part no.: 6036924 |

Ultrasonic sensors - UM30

• Operating range, limiting range: 350 - 3,400 mm, 5,000 mm
• Target: Natural objects
• Resolution: 0.18 mm
• Response time: 130 ms
• Switching frequency: 4 Hz
• Ultrasonic frequency (typical): 120 kHz
• Digital output: PNP

• Analog output: Current output (4-20 mA) / voltage output (0-10 V)
• Housing material: Metal (nickel-plated brass)
• Design: Cylindrical
• Thread size: M30 x 1.5
• Sending axis: Straight
• Connection type: Male connector, M12, 5-pin
• Supply voltage UB: DC 9 V ... 30 V
• Power consumption: 2.4 W
• Indication: LED display, 2 x LED
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 47.5 x 47.5 x 102 (mm)

Download Link: Documents Related | www.sick.com

Product data sheet: UM30-214118
Product family overview: UM30 series
Operating: UM30-21_118
Product information: Ultrasonic Sensors UM30, UM18, UM12, UC30

Please Notes

Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty

Dimensional drawing UM30-214

Detection area

Connection diagram UM30-21x118 Connector M12, 5-pin

Connection type

Adjustment possible
