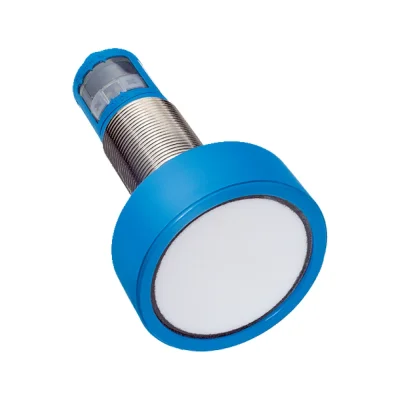

SICK UM30-215111 Ultrasonic Distance Sensors UM30

Manufacturer: SICK
Type: UM30-215111 | Part no.: 6037663 |

Ultrasonic sensors - UM30

• Operating range, limiting range: 600 - 6,000 mm, 8,000 mm
• Target: Natural objects
• Resolution: 0.18 mm
• Response time: 240 ms
• Switching frequency: 3 Hz
• Ultrasonic frequency (typical): 80 kHz

• Digital output: 1 x PNP

• Analog output: -
• Housing material: Metal (nickel-plated brass)
• Design: Cylindrical
• Thread size: M30 x 1.5
• Sending axis: Straight
• Connection type: Male connector, M12, 5-pin
• Supply voltage UB: DC 9 V ... 30 V
• Power consumption: 2.4 W
• Indication: LED display, 2 x LED
• Enclosure rating: IP65 / IP67
• Dimensions (W x H x D): 65 x 65 x 105 (mm)

Download Link: Documents Related | www.sick.com

Product data sheet: UM30-215111 (6037663)
Product family overview: UM30 series
Operating: UM30-21_118
Product information: Ultrasonic Sensors UM30, UM18, UM12, UC30



Please Notes:

Country of Origin: Germany
All prices are net prices. (Excluding VAT.)
Inquire about product usage free of charge
1 Year of Warranty

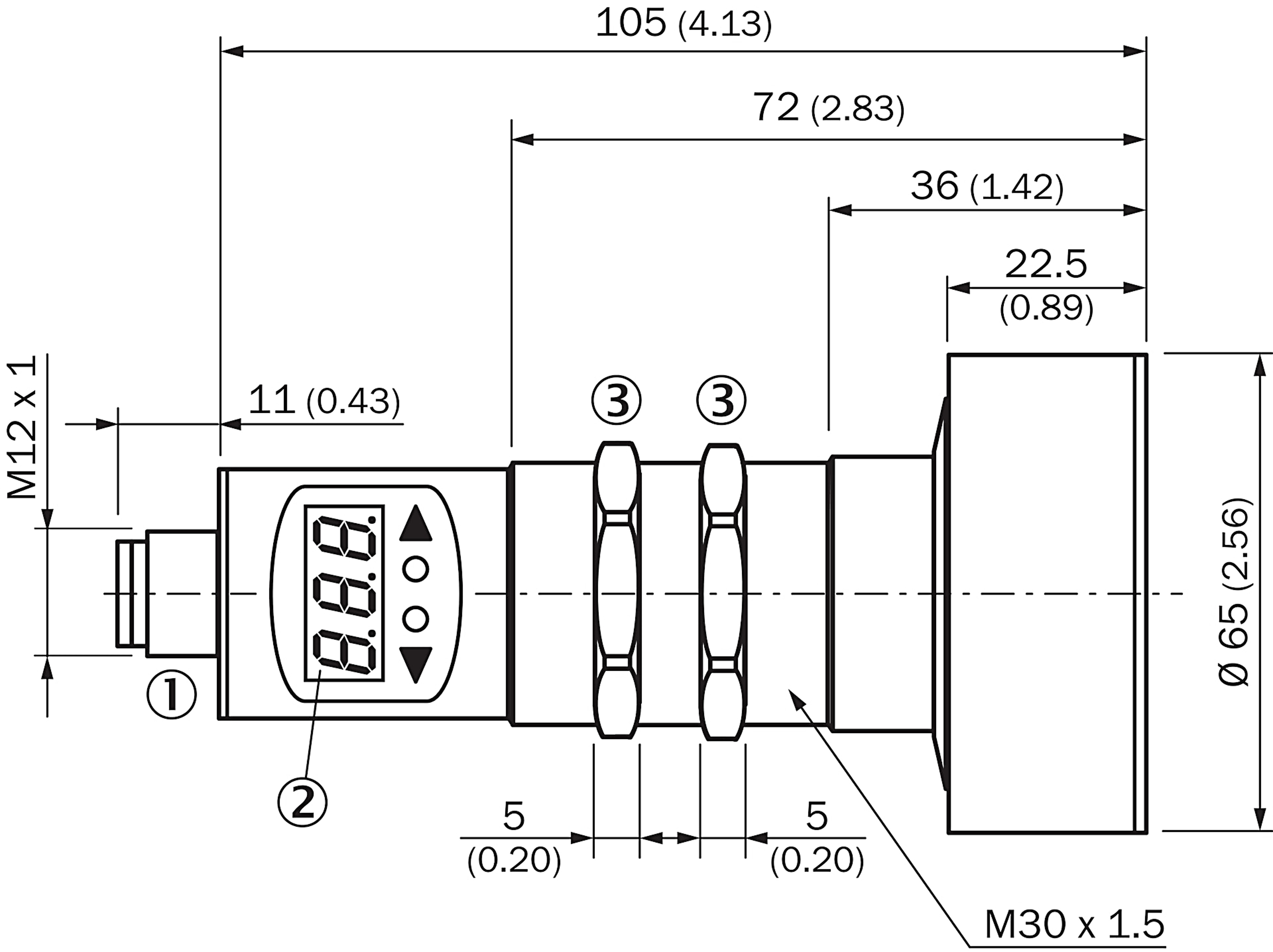

Dimensional drawing UM30-215

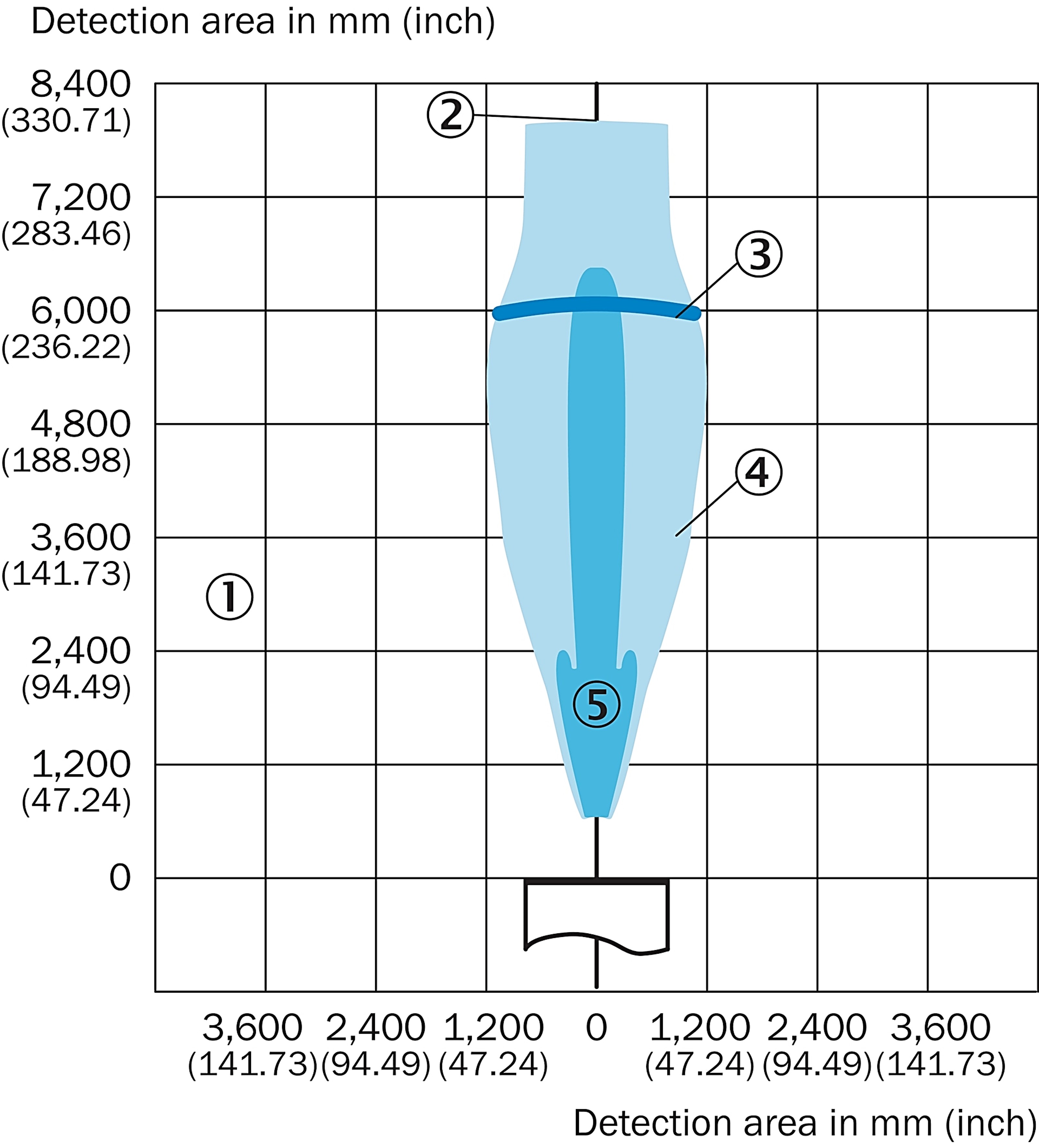

Detection area UM30-215, UC30-215

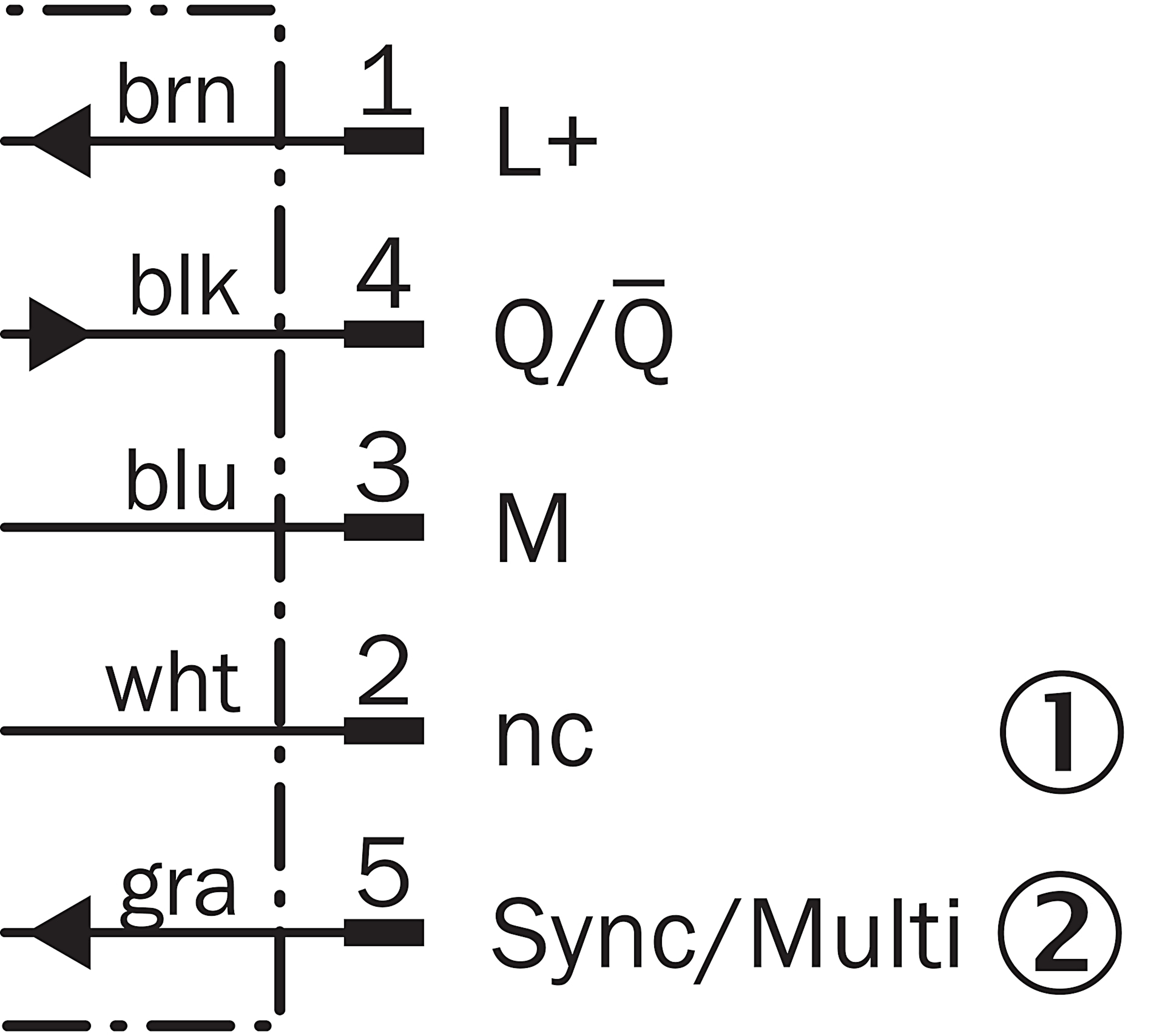

Connection diagram

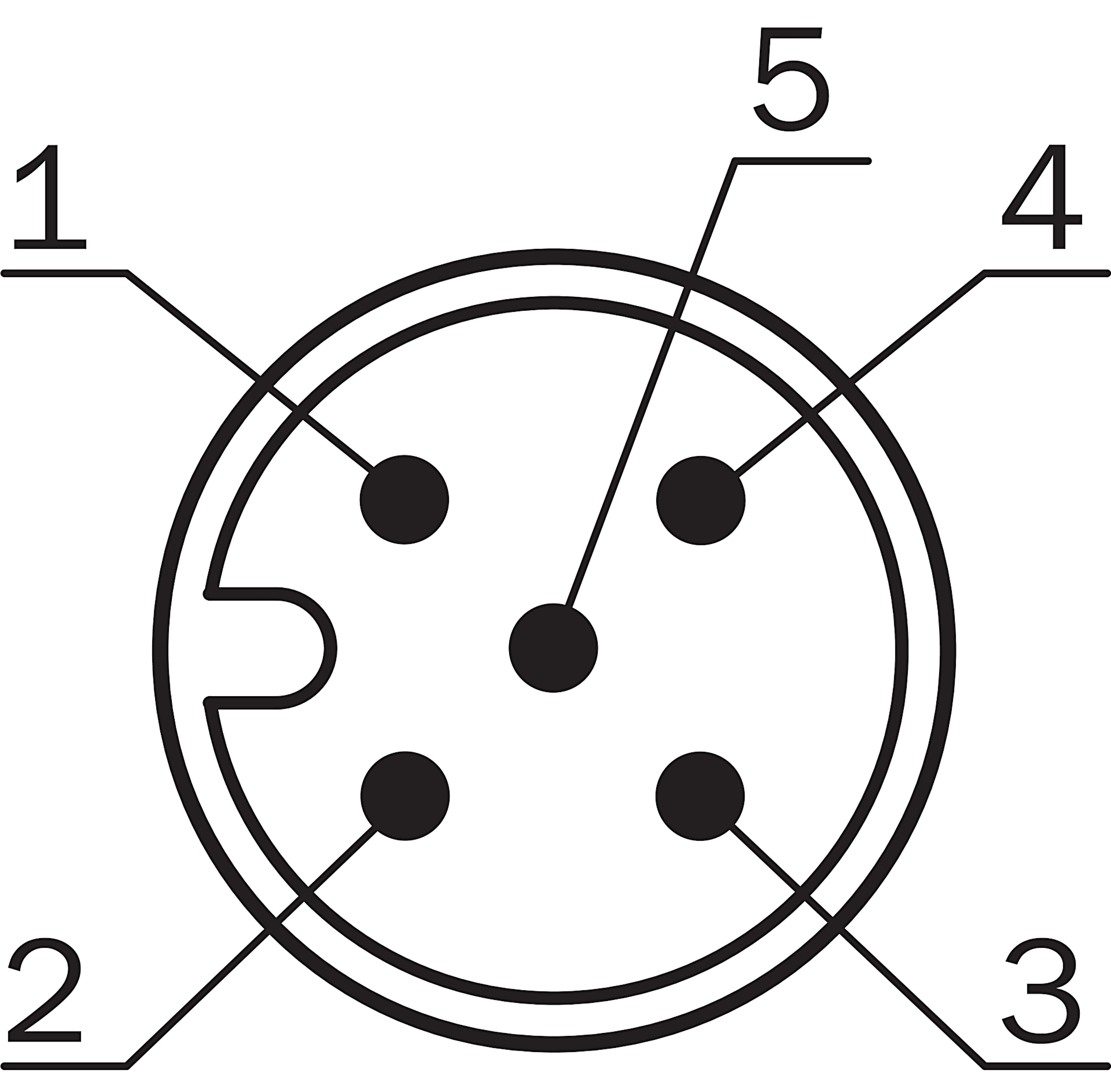

Connection type

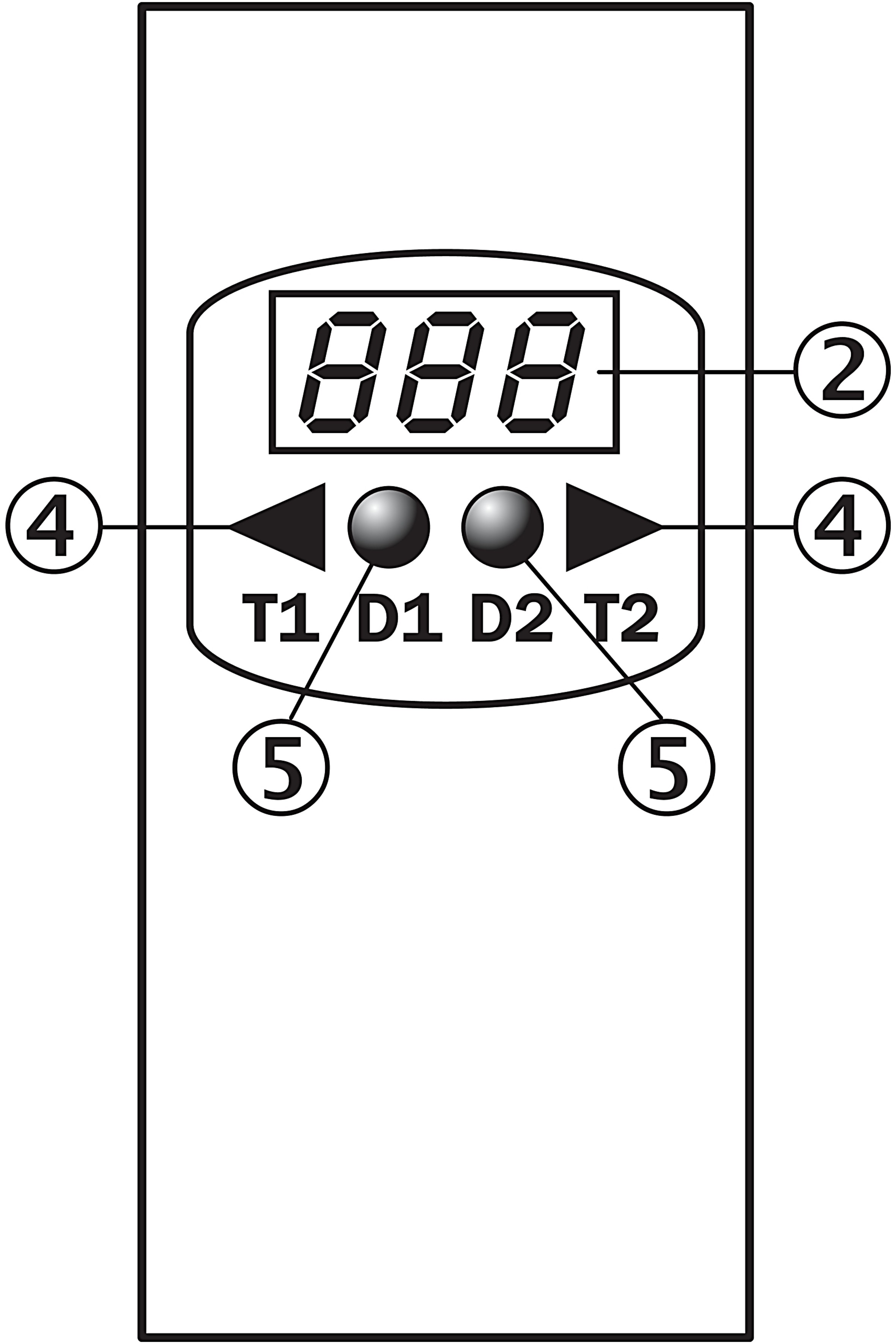

Adjustment possible
